Magnetic wire winding machines

Description

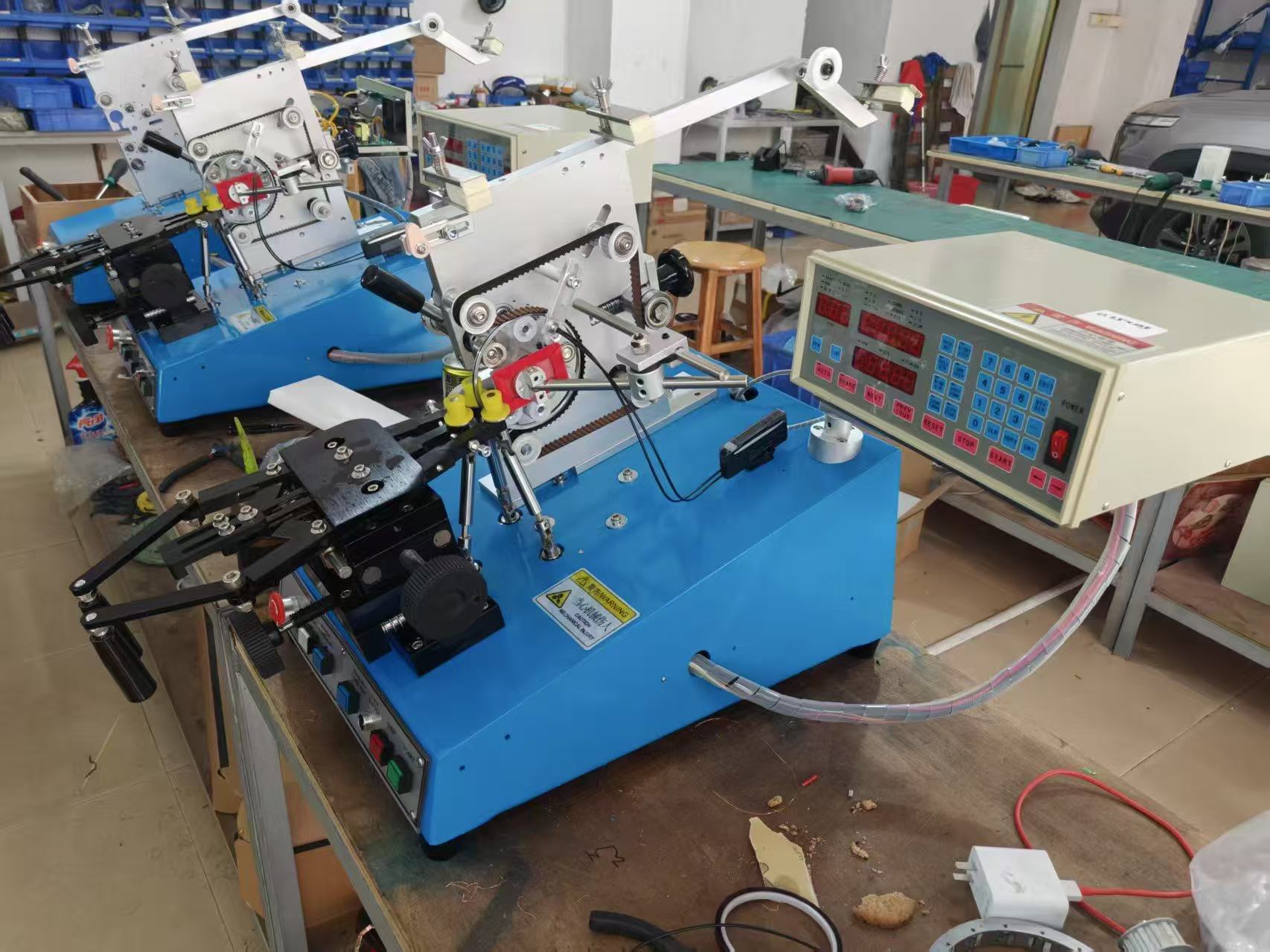

Magnetic wire winding machines

Magnetic wire winding machines are precision automated equipment with the following advantages:

1. They can be equipped with either belt-driven or side-slipper-type headstocks to meet customer process requirements, increasing the equipment’s applicability and reducing purchase costs.

2. They employ an advanced wire storage ring operation method, resulting in high production efficiency.

3. They use high-quality wire storage rings, which not only have a long lifespan but also low runout.

4. They accurately calculate the length of enameled wire, reducing wire waste.

5. They use optical sensors to calculate the number of winding turns quickly and accurately.

6. They allow selection of different winding directions, setting the number of repeated winding turns (angle), and segment angles.

7. Digital programming allows for precise control of the winding spacing.

8. Can store 999 sets of step sequence data and retain the memory for more than one year.

Technical Parameters:

1. Production Efficiency: 60-120S (Equipment Performance Efficiency)

2. Applicable Wire Diameter: 0.2-0.8mm

3. Magnetic Ring Specifications: Maximum Outer Diameter 30mm, Minimum Inner Diameter: 4mm

4. Different magnetic ring specifications can be accommodated by changing the wire storage ring.

5. Power Supply: 220V/50Hz

6. Machine Weight: Approximately 38KG

7. Machine Dimensions: 900X600X1000 mm

8. Equipment Appearance: Main Body Blue
