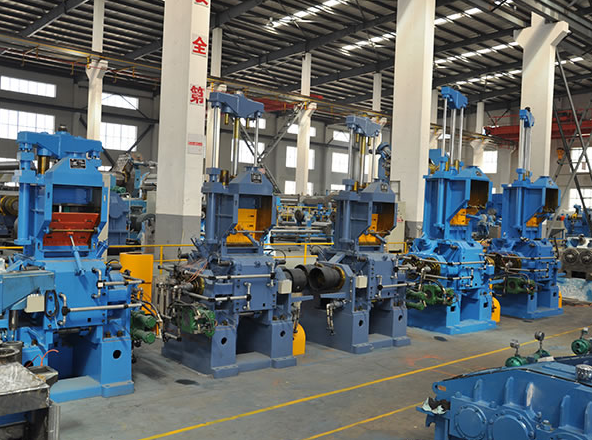

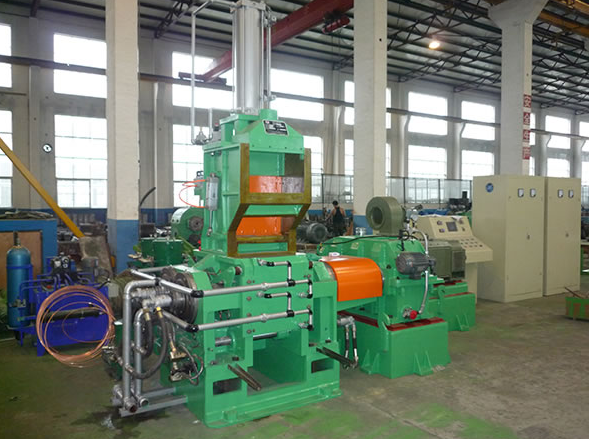

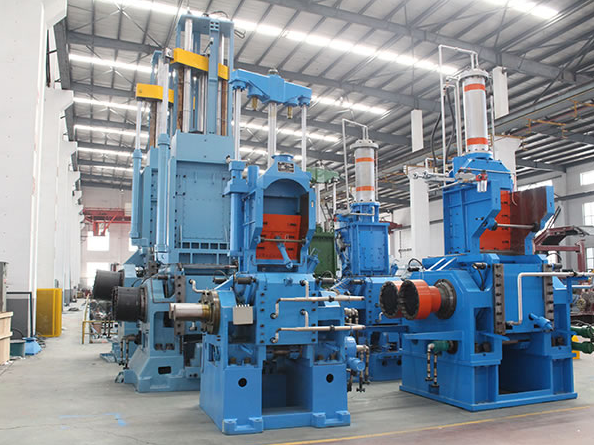

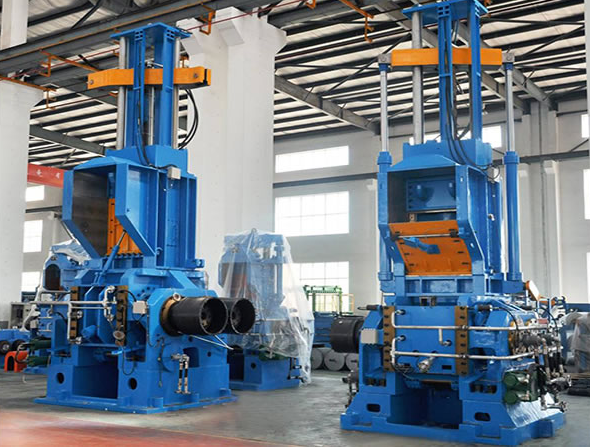

Internal Mixer/ Banbury Mixer

Description

Internal Mixer/ Banbury Mixer

Characteristics
1. Internal mixers are primarily used for plasticating, mixing and final mixing of rubber and plastic materials.

2. Different rotors are used to accommodate diferent mixing processes. Customers can choose rotors based onwhat they need.

3. Rotors, mixing chamber, unloading gate, and counter weight can be cooled using a water cooling system with alarge cooling area. In addition, a water temperature control system is also equipped to efficiently guarantee thequality and stability of the rubber obtained.

4. Numerous parts, including the rotor surface, internal wall of the mixing chamber, surface of the unloading gate,and surface of the counter weight will come into contact with mixed materials. To prevent corrosion, they are coatedwith a wear resistant alloy or hard chrome, thus preventing pollution and reducing overall wear.

5. The rotor ends are sealed with a hydraulic sealing device, which features an adjustable sealing pressure and high
reliability.

6. The ram can be pneumatically driven or hydraulically driven to ensure the constant pressure on the mixedmaterials.

7. The drop door achieves discharging using a drop ping method. The unloading gate is driven by a combination ofthe gear rack, gear wheel, and hydraulic cylinder, which work together to ensure the tight locking and self-lockingperformance, as well as overall sealing effect.

8. The transmission system is stable, low noise, and has a long service life. The structure and speed of thetransmission mechanism can be customized based on customer requirements.

9. PLC control systems are most often used, and achieve both automatic and manual control. The control system iseasy to operate, has a high disturbance capacity, safe and reliable signal detecting capacity, and a feedback function.It is able to effectively control the rubber quality and ensure the mixer operates in normal methods. The controlscheme is caried out with 1 of 3 choices: time, temperature, or simultaneous time and temperature. The controlsystem can be designed according to specific customer requirements.
